Male Luer Lock Dimensions

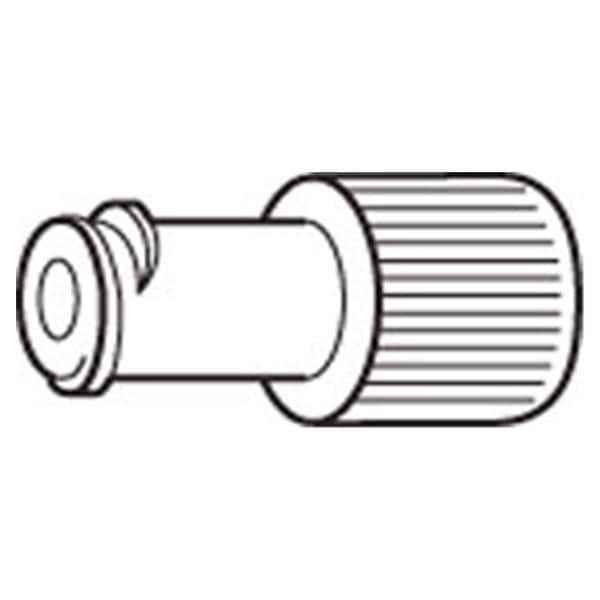

Male luer lock connectors are available with integral lock rings or with rotatable features to allow you to position the tubing before assembly.

Male luer lock dimensions.

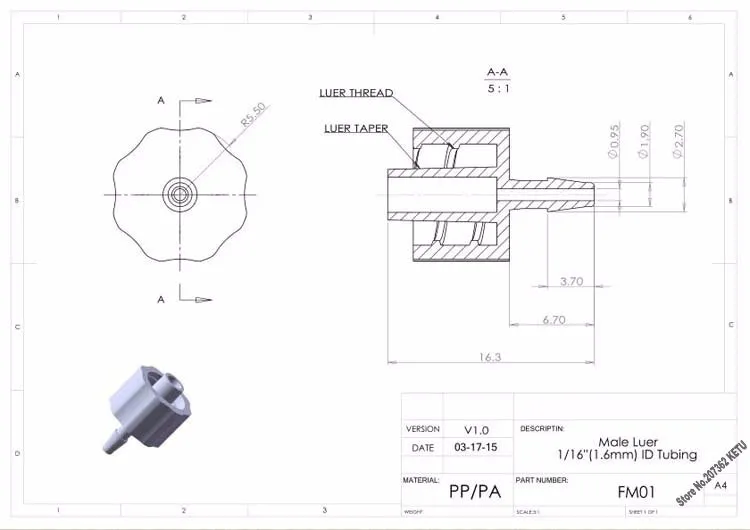

Invented by karl schneider and named after the 19th. Currently iso 80369 governs the luer standards and testing methods. 53 luer 3d models are waiting for you. Male luer lock dimensions concentric with the luer cone there is a cylindrical collar with an internal thread lower left on picture the cylinder might also be a loose cap like on the stopcock above right side so you can fix the luer lock without turning the male piece itself.

Luer lock connectors female are joined by means of a tabbed hub on the female fitting that screws into threads in a sleeve on the male fitting and attaches securely. Couplings have a universal connection so the plugs will connect to any of the sockets regardless of the pipe or tube size. They are generally used to make sealed leak proof unions in laboratory instruments and medical devices eg. Download or buy then render or print from the shops or marketplaces.

They have a compact body so they re easy to fit in tight spaces. Ridges help ensure a secure grip and promote easy handling. Order number reference part number instructions for use mr status fr id mm length cm female to male luer lock polyethylene with plastic fittings. Also known as luer lock couplings these consist of a plug and socket sold separately that connect with a half turn.

The dimensions and tolerances for the male and female fittings specified in iso 594 1 apply to the relevant conical part of the fitting described in clause 4 of this part of iso 594. Luer lock syringe connectors which is used for joining needles to syringes. Male luer lock removable needle hub adapter. 3 2 male and female 6 luer conical lock fittings 3 2 1 rigid materials the dimensions of male and female lock fittings made of rigid materials shall be as.

The male luer non vented caps with strap help prevent loss or misplacement and will lock on any female luer lock. 1725tll volume 250 μl ptfe luer lock needle size not included pricing. 1 product result match criteria. The integral pvc strap tethers to tubing assemblies without binding and rotates without twisting.

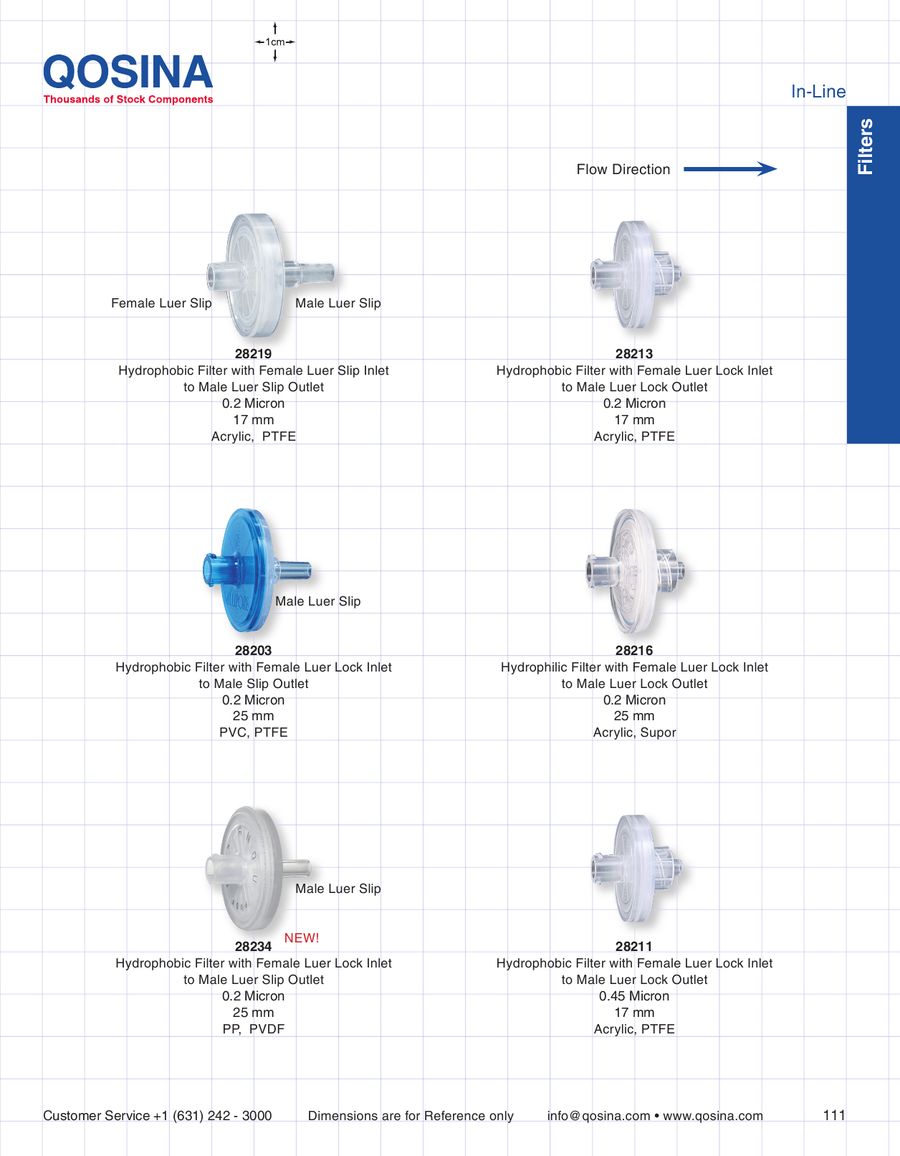

Luer locks and luer slips are two main categories of luer fittings. Luer lock conversion kit.
